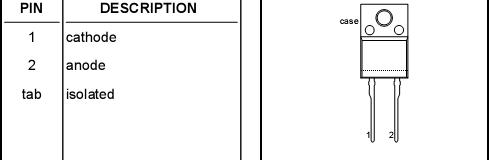

Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* High thermal cycling performance* Isolated mounting tabPinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VRSM Peak non-repetitive peakreverse voltage 1500 V VRRM Peak repetitive ...
BY459X-1500S: Features: * Low forward volt drop* Fast switching* Soft recovery characteristic* High thermal cycling performance* Isolated mounting tabPinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
VRSM | Peak non-repetitive peak reverse voltage |
1500 | V | ||
VRRM | Peak repetitive reverse voltage |
1500 | V | ||
VRWM | Crest working reverse voltage | 1300 | V | ||
I F(peak) | Peak working forward curren | f = 48 kHz f = 62 kHz |
12 - - 12 |
A | |
I FRM | Peak repetitive forward current |
t = 100 s | 14 | A | |
IF(RMS) | RMS forward current | 30 | A | ||
IFSM | Peak non-repetitive forward current |
t = 10 ms t = 8.3 ms sinusoidal; Tj = 150 ?C prior to surge; with reapplied VRWM(max) |
100 110 |
A |
Tstg | storage temperature | -40 | +150 | ||
Tj | operating junction temperature | +150 |
