BXL4001

MOSFET N-CH 75V 85A TO-220

product image

BXL4001 Picture
See larger image
SeekIC No. : 003431674 Detail

BXL4001: MOSFET N-CH 75V 85A TO-220

BXL4001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BXL4001
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: ON Semiconductor
FET Type: MOSFET N-Channel, Metal Oxide Transistor Type: -
Current - Collector (Ic) (Max): - FET Feature: Standard
Continuous Drain Current : 2.1 A Drain to Source Voltage (Vdss): 75V
Voltage - Collector Emitter Breakdown (Max): - Current - Continuous Drain (Id) @ 25° C: 85A
Vce Saturation (Max) @ Ib, Ic: - Current - Collector Cutoff (Max): -
Rds On (Max) @ Id, Vgs: 12.4 mOhm @ 43A, 10V DC Current Gain (hFE) (Min) @ Ic, Vce: -
Vgs(th) (Max) @ Id: 4V @ 1mA Gate Charge (Qg) @ Vgs: 115nC @ 10V
Frequency - Transition: - Input Capacitance (Ciss) @ Vds: 6700pF @ 20V
Power - Max: 1.75W Mounting Type: Through Hole
Package / Case: TO-220-3 Supplier Device Package: TO-220(LS)

Description

Series: -
FET Type: MOSFET N-Channel, Metal Oxide
Transistor Type: -
Current - Collector (Ic) (Max): -
Voltage - Collector Emitter Breakdown (Max): -
Vce Saturation (Max) @ Ib, Ic: -
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: -
Frequency - Transition: -
FET Feature: Standard
Mounting Type: Through Hole
Package / Case: TO-220-3
Gate Charge (Qg) @ Vgs: 115nC @ 10V
Drain to Source Voltage (Vdss): 75V
Packaging: Bulk
Vgs(th) (Max) @ Id: 4V @ 1mA
Power - Max: 1.75W
Current - Continuous Drain (Id) @ 25° C: 85A
Manufacturer: ON Semiconductor
Rds On (Max) @ Id, Vgs: 12.4 mOhm @ 43A, 10V
Input Capacitance (Ciss) @ Vds: 6700pF @ 20V
Supplier Device Package: TO-220(LS)

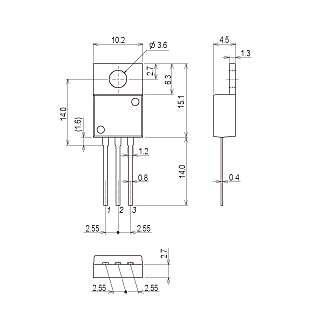

Pinout




Specifications

Absolute maximum ratings
VDSS [V]75
VGSS [V]20
ID [A]85
PD [W]75
Tc=25°C
Electrical characteristics
RDS(on) typ [Ω]
VGS=10V
ID [A]=43		0.009
VGS(off) min [V]2.0
VGS(off) max [V]4.0
|yfs| typ [S]75
Ciss typ [pF]6700
Qg typ [nC]115
