BUZ32

MOSFET N-CH 200V 9.5A

product image

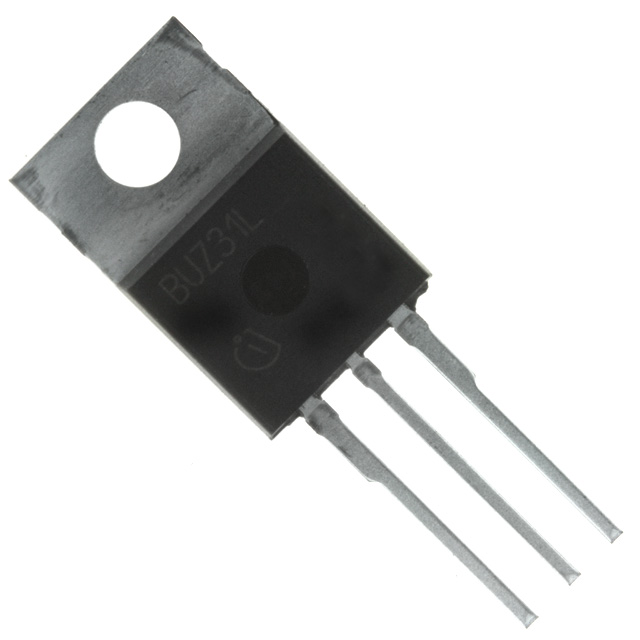

BUZ32 Picture
See larger image
SeekIC No. : 00151867 Detail

BUZ32: MOSFET N-CH 200V 9.5A

BUZ32 Data Sheet

floor Price/Ceiling Price

US $ .59~1.06 / Piece | Get Latest Price
Part Number:
BUZ32
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • Unit Price
  • $1.06
  • $.95
  • $.76
  • $.59
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 200 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 9.5 A
Resistance Drain-Source RDS (on) : 0.4 Ohms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : TO-220AB Packaging : Tube

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : Through Hole
Maximum Operating Temperature : + 150 C
Packaging : Tube
Package / Case : TO-220AB
Drain-Source Breakdown Voltage : 200 V
Continuous Drain Current : 9.5 A
Resistance Drain-Source RDS (on) : 0.4 Ohms


Features:

• 9.5A, 200V
• rDS(ON) = 0.400
• SOA is Power Dissipation Limited
• Nanosecond Switching Speeds
• Linear Transfer Characteristics
• High Input Impedance
• Majority Carrier Device
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount Components to PC Boards"


Specifications

BUZ32 UNITS
Drain to Source Breakdown Voltage (Note 1) VDS 200 V
Drain to Gate Voltage (RGS = 20k) (Note 1) VDGR 200 V
Continuous Drain Current, TC = 55 ID 9.5 A
Pulsed Drain Current (Note 3) IDM 38 A
Gate to Source Voltage VGS ±20 V
Maximum Power Dissipation PD 75 W
Linear Derating Factor 0.6 W/
Operating and Storage Temperature TSTG, TJ -55 to 150
DIN Humidity Category - DIN 40040 E
IEC Climatic Category - DIN IEC 68-1 55/150/56
Leads at 0.063in (1.6mm) from Case for 10s TL 300
Package Body for 10s, See Techbrief 334 Tpkg 260

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.




Parameters:

Technical/Catalog InformationBUZ32
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)200V
Current - Continuous Drain (Id) @ 25° C9.5A
Rds On (Max) @ Id, Vgs400 mOhm @ 6A, 10V
Input Capacitance (Ciss) @ Vds 530pF @ 25V
Power - Max75W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs-
Package / CaseTO-220AB
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BUZ32
BUZ32
BUZ32IN ND
BUZ32INND
BUZ32IN
