BUZ31L

MOSFET N-CH 200V 13.5A

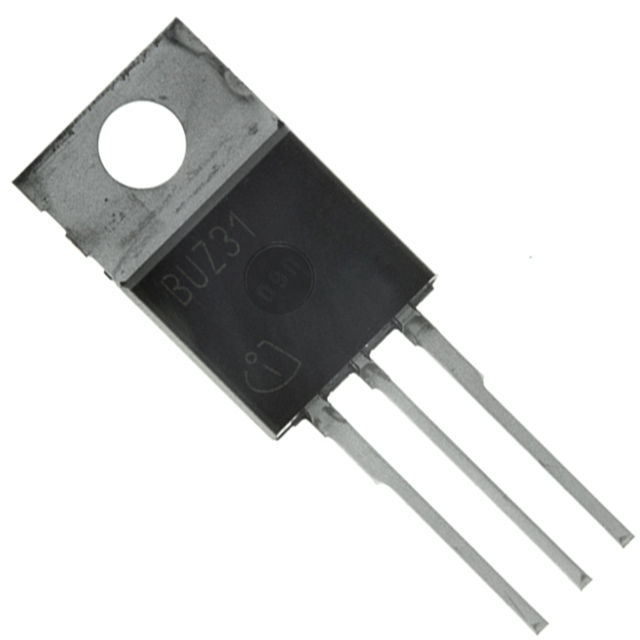

product image

BUZ31L Picture
See larger image
SeekIC No. : 00154627 Detail

BUZ31L: MOSFET N-CH 200V 13.5A

BUZ31L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUZ31L
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 200 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 13.5 A
Resistance Drain-Source RDS (on) : 0.2 Ohms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : TO-220AB Packaging : Tube

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : Through Hole
Maximum Operating Temperature : + 150 C
Packaging : Tube
Package / Case : TO-220AB
Drain-Source Breakdown Voltage : 200 V
Continuous Drain Current : 13.5 A
Resistance Drain-Source RDS (on) : 0.2 Ohms


Features:

• N channel
• Enhancement mode
• Avalanche-rated
• Logic Level


Specifications

Parameter Symbol Values Unit
Continuous drain current
TC =28
 ID 13.5 A
Pulsed drain current
TC = 25 		IDpuls 54
Avalanche current,limited by Tjmax IAR 13.5
Avalanche energy,periodic limited by Tjmax
 EAR

9

 mJ

Avalanche energy, single pulse
ID =13.5A, VDD =50V, RGS = 25
L=1.65 mH, Tj = 25

EAS 200
Gate source voltage VGS ± 20 V
Power dissipation
TC = 25		 Ptot 75 W
Operating temperature Tj -55 ... + 150
Storage temperature Tstg -55 ... + 150
Thermal resistance, chip case RthJC 1.67 K/W
Thermal resistance, chip to ambient RthJA 75
DIN humidity category, DIN 40 040 E
IEC climatic category, DIN IEC 68-1 55 / 150 / 56



Parameters:

Technical/Catalog InformationBUZ31L
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)200V
Current - Continuous Drain (Id) @ 25° C13.5A
Rds On (Max) @ Id, Vgs200 mOhm @ 7A, 5V
Input Capacitance (Ciss) @ Vds 1600pF @ 25V
Power - Max95W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs-
Package / CaseTO-220AB
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BUZ31L
BUZ31L
BUZ31LIN ND
BUZ31LINND
BUZ31LIN
