Product Details

Description

Application

These products are not designed for use in life support appliances, devices or systems where malfunction of these
products can be reasonably expected to result in personal injury. Philips customers using or selling these products
for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting
from such improper use or sale.

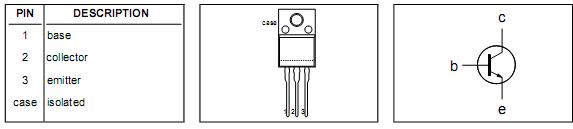

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN	MAX	UNIT
V_CESM	Collector-emitter voltage peak value	V_BE = 0V		1000	V
V_CEO	Collector-emitter voltage (open base)			450	V
V_EBO	Emitter-base voltage(open collector)			5	V
I_C	Collector current (DC)			10	A
I_B	Base current (DC)			2	A
I_BM	Base current peak value			4	A
P_tot	Total power dissipation	Tmb 25		32	W
T_stg	Storage temperature		-55	150
T_j	Junction temperature			150

Description

High-voltage, high-speed glass-passivated npn power transistor BUT11XI in a plastic full-pack envelope intended for use in
electronic HF/OH lighting ballast applications, converters, inverters, switching regulators, motor control systems,
etc.
