BUT11APX-1200

Application

These products are not designed for use in life support appliances, devices or systems where malfunction of these
products can be reasonably expected to result in personal injury.  Philips customers using or selling these products
for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting
from such improper use or sale.

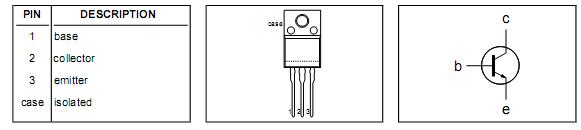

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VCESM	Collector to emitter voltage	VBE=0V	-	1200	V
VCEO	Collector to emitter voltage (open base)		-	550	V
VCBO	Collector to base voltage (open emitter)		-	1200	V
IC	Collector current (DC)		-	6	A
ICM	Collector current peak value		-	10	A
IB	Base current (DC)		-	3	A
IBM	Base current peak value		-	5	A
Ptot	Total power dissipation	Ths25	-	32	W
Tstg	Storage temperature		-65	150
Tj	Junction temperature		-	150

Description

Enhanced performance new generation,high voltage, high-speed switching npn transistor BUT11APX-1200 in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers. Features of BUT11APX-1200 exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation.
