BUT11AI

ApplicationThese products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these productsfor use in such applications do so at their own risk and a...

product image

BUT11AI Picture
See larger image
SeekIC No. : 004304644 Detail

BUT11AI: ApplicationThese products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips...

BUT11AI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUT11AI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury.  Philips customers using or selling these products
for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting
from such improper use or sale.

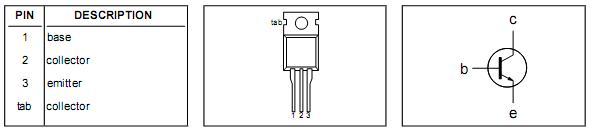

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCESM Collector-emitter voltage peak value VBE = 0V  - 1000 V
VCEO Collector-emitter voltage (open base)    - 450 V
IC Collector current (DC)    - 5 V
ICM Collector current peak value    - 10 A
IB Base current (DC)    - 2 A
IBM Base current peak value    - 4 A
Ptot Total power dissipation Tmb 25  - 100 W
Tstg Storage temperature   -55 150
Tj Junction temperature    - 150



Description

Enhanced performance, high speed switching npn transistor BUT11AI in TO220AB envelope specially suited for high frequency electronic lighting ballast applications and converters, inverters, switching regulators, motor control systems etc.
