Product Details

Description



Features:

TrenchMOS™ technology
Q101 compliant
175 °C rated
Logic level compatible.


Application

Automotive and general purpose power switching:
    - 12 V and 24 V loads
    - Motors, lamps and solenoids.

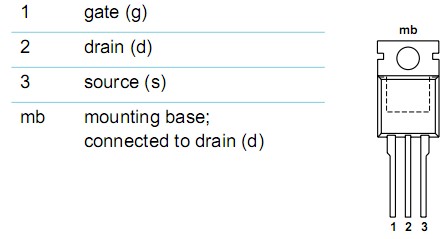

Pinout

Connection Diagram


Specifications

Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage (DC)   − 55 V
VDGR drain-gate voltage (DC) RGS =20kΩ − 55 V
VGS gate-source voltage (DC)   − ±10 V
VGSM non-repetitive gate-source voltage tp 50 µs − ±15 V
ID drain current (DC) Tmb =25 °C; VGS =5V; − 73 A
Tmb = 100 °C; VGS =5V; − 52 A
IDM peak drain current Tmb =25 °C; pulsed; tp 10 µs; − 266 A
Ptot total power dissipation Tmb =25 °C; − 149 W
Tstg storage temperature   −55 +175 °C
Tj operating junction temperature   −55 +175 °C
Source-drain diode
IDR reverse drain current (DC) Tmb =25 °C − 73 A
IDRM pulsed reverse drain current Tmb =25 °C; pulsed; tp 10 µs − 266 A
Avalanche ruggedness
WDSS non-repetitive avalanche energy unclamped inductive load; ID =73A; VDS 55 V; VGS =5V; RGS =50 Ω; starting Tmb =25 °C − 230 mJ



Description

N-channel enhancement mode field-effect power transistor BUK9614-55A in a plastic package using TrenchMOS™ technology, featuring very low on-state resistance.

Product availability:

BUK9514-55A in SOT78 (TO-220AB)

BUK9614-55A in SOT404 (D 2-PAK).
