Product Details

Description



Pinout

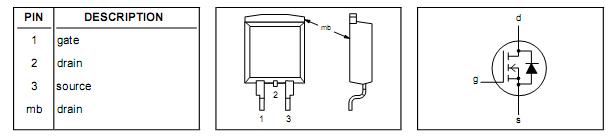

Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
VDS  Drain-source voltage  -  -  60  V
 VDGR  Drain-gate voltage  RGS=20k  -  60  V
± VGS  Gate-source voltage  -  -  15  V
± VGSM Non-repetitive gate-source voltage  tp50s  -  20  V
 ID Drain vurrent (DC)  Tmb=25  -  50  A
 ID Drain vurrent (DC)  Tmb=100  -  38  A
 IDM  Drain vurrent (pulse peak value)  Tmb=25  -  200  A
 Ptot  Total power temperature  Tmb=25  -  150  W
 Tstg  Storage temperature  -  -55  175
 Tj  Junction temperature  -  -  175



Description

N-channel enhancement mode logic level field-effect power transistor BUK566-60A in a plastic envelope suitable for surface mount applications.
BUK566-60A is intended for use in Switched Mode Power Supplies (SMPS), motor control, welding, DC/DC and AC/DC converters, and in automotive and general purpose switching applications.
