BUK565-60A

PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage - - 60 V VDGR Drain-gate voltage RGS=20k - 60 V ±VGS Gate-source voltage - - 15 V ±VGSM Non-repetitive gate-source voltage tp50s - 20 V ID Drain vurrent (DC) Tmb=...

product image

BUK565-60A Picture
See larger image
SeekIC No. : 004304352 Detail

BUK565-60A: PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS Drain-source voltage - - 60 V VDGR Drain-gate voltage RGS=20k - 60 V ±VGS Gate-source voltage - - ...

BUK565-60A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK565-60A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

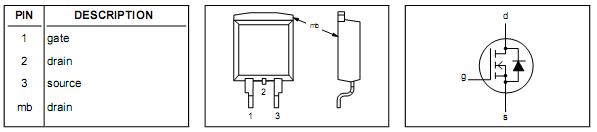

Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
VDS  Drain-source voltage  -  -  60  V
 VDGR  Drain-gate voltage  RGS=20k  -  60  V
± VGS  Gate-source voltage  -  -  15  V
± VGSM Non-repetitive gate-source voltage  tp50s  -  20  V
 ID Drain vurrent (DC)  Tmb=25  -  39  A
 ID Drain vurrent (DC)  Tmb=100  -  28  A
 IDM  Drain vurrent (pulse peak value)  Tmb=25  -  156  A
 Ptot  Total power temperature  Tmb=25  -  125  W
 Tstg  Storage temperature  -  -55  175
 Tj  Junction temperature  -  -  175



Description

N-channel enhancement mode logic
level field-effect power transistor BUK565-60A in a
plastic envelope suitable for surface
mount applications.
BUK565-60A is intended for use in
Switched Mode Power Supplies
(SMPS), motor control, welding,
DC/DC and AC/DC converters, and in
automotive and general purpose
switching applications.
