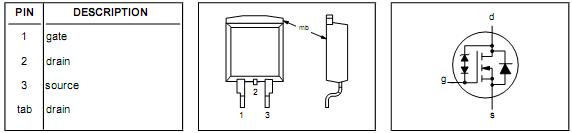

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS Drain-source voltage  continuous  - 30 V
VDG Drain-gate voltage  continuous  - 30 V
±VGS Gate-source voltage  -  - 15 V
ID Drain current(DC)  Tmb=25  - 21 A
ID Drain current(DC)  Tmb=100  - 15 A
ICM Drain current (pulse peak value)  Tmb=25  - 84 A
Ptot Total power dissipation  Tmb=25  - 75 W
Tstg Stoage temperature  -  -55 175
Tj Junction temperature  -  -55 175



Description

ProtectedN-channelenhancement modelogiclevelfield-effectpower transistor BUK563-48C inaplasticenvelope suitableforsurfacemount applications.
BUK563-48C isintendedforusein automotiveapplications.It has built-inzenerdiodesprovidingactive drainvoltageclamping.
