Features:

TrenchMOS output stage
Current limiting
Overload protection
Overtemperature protection
Protection latched reset by input
5 V logic compatible input level
Control of output stage and supply of overload protection circuits derived from input
Low operating input current permits direct drive by micro-controller
ESD protection on all pins
Overvoltage clamping for turn off of inductive loads

Application

General purpose switch for driving
lamps
motors
solenoids
heaters
in automotive systems and other applications.

Pinout

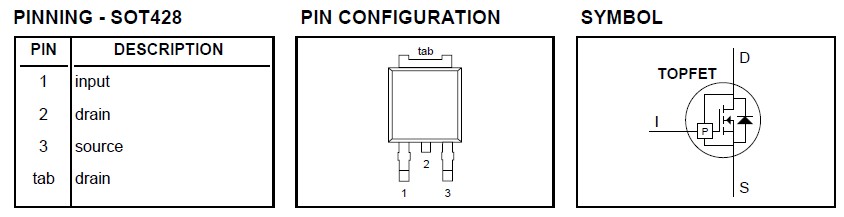

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.		UNIT
V_DS I_D I_D I_I I_IRM P_D T_stg T_j T_slod	Continuous drain source voltage¹ Continuous drain current Continuous drain current Continuous input current Non-repetitive peak input current Total power dissipation Storage temperature Continuous junction temperature² Case temperature	- V_IS = 5V;T_mb 25 V_IS = 5V;T_mb 110 - t_p 1ms T_mb 25 - normal operation during soldering	- - - -5 -10 - -55 - -	50 self-limited 8 5 10 40 175 150 260		V A A mA mA W

Description

Monolithic temperature and overload protected logic level power MOSFET BUK138-50DL in TOPFET2 technology assembled in a 3 pin surface mount plastic package.
