BUK136-50L

Features: TrenchMOS output stage with low on-state resistanceSeparate input pin for higher frequency drive5 V logic compatible inputSeparate supply pin for logic and protection circuits with low operating currentOvertemperature protectionDrain current limitingShort circuit load protectionLatched o...

product image

BUK136-50L Picture
See larger image
SeekIC No. : 004304180 Detail

BUK136-50L: Features: TrenchMOS output stage with low on-state resistanceSeparate input pin for higher frequency drive5 V logic compatible inputSeparate supply pin for logic and protection circuits with low ope...

BUK136-50L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK136-50L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

TrenchMOS output stage with low on-state resistance
Separate input pin for higher frequency drive
5 V logic compatible input
Separate supply pin for logic and protection circuits with low operating current
Overtemperature protection
Drain current limiting
Short circuit load protection
Latched overload trip state reset by the protection pin
Diagnostic flag pin indicates protection supply connected, overtemperature condition,overload tripped state, or open circuit load (detected in the off-state)
ESD protection on all pins
Overvoltage clamping


Application

General purpose switch for automotive systems and other applications.


Pinout

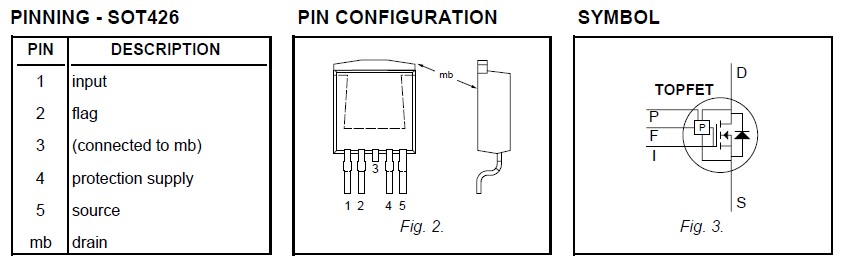

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT
VDS Continuous voltage
Drain source voltage1		 VIS = 0 V
-
50
V
ID
II
IF
IP		 Continuous currents
Drain current
Input current
Flag current
Protection supply current		 VPS = 5 V; Tmb = 25°C
VPS = 0 V; Tmb = 80°C
-
-
-5
-5
-5
self -limited
40
5
5
5
A
A
mA
mA
mA
Ptot
Tstg
Tj
Tsold		 Thermal
Total power dissipation
Storage temperature
Junction temperature2
Mounting base temperature		 Tmb = 25°C
continuous
during soldering
-
-55
-
-
107
175
150
260
W
°C
°C
°C



Description

Monolithic logic level protected power MOSFET BUK136-50L using TOPFET2 technology assembled in a 5 pin surface mounting plastic package.
