BUK127-50GT

Features: *TrenchMOS output stage*Current trip protection*Overload protection*Overtemperature protection*Protection latched reset by input*5 V logic compatible input level*Control of output stage and supply of overload protection circuits derived from input*Low operating input current permits dire...

product image

BUK127-50GT Picture
See larger image
SeekIC No. : 004304175 Detail

BUK127-50GT: Features: *TrenchMOS output stage*Current trip protection*Overload protection*Overtemperature protection*Protection latched reset by input*5 V logic compatible input level*Control of output stage an...

BUK127-50GT Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK127-50GT
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*TrenchMOS output stage
*Current trip protection
*Overload protection
*Overtemperature protection
*Protection latched reset by input
*5 V logic compatible input level
*Control of output stage and supply of overload protection circuits derived from input
*Low operating input current permits direct drive by micro-controller
*ESD protection on all pins
*Overvoltage clamping for turn off of inductive loads


Application

General purpose switch for driving
*lamps
*motors
*solenoids
*heaters
in automotive systems and other
applications.

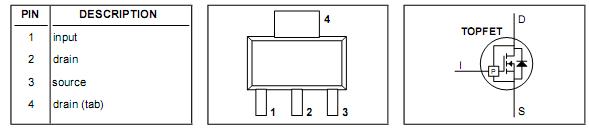

Pinout

Connection Diagram


Specifications

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
 VDS  Continuous drain source voltage1  -  -  50  V
 ID  Drain current2  -  -  current trip  A
 ID  Continuous drain current  Ta=25  -  2.1  A
 II  Continuous input current  clamping  -  3  mA
 IIRM  Non-repetitive peak input current  tp1ms  -  10  mA
 PD  Total power dissipation  Ta=25  -  1.8  W
 Tstg  Storage temperature  -  -55  150
 Tj  Continuous junctinon temperaure  normal operation3  -  150



Description

Monolithic temperature and overload protected logic level power MOSFET BUK127-50GT in TOPFET2 technology assembled in a 3 pin plastic package.
