Product Details

Description



Features:

Vertical power DMOS output stage
Low on-state resistance
Logic and protection supply from separate pin
Low operating supply current
Overload protection against over temperature
Overload protection against short circuit load
Latched overload protection reset by protection supply
Protection circuit condition indicated by flag pin
5 V logic compatible input level
Separate input pin for higher frequency drive
ESD protection on input, flag and protection supply pins
Over voltage clamping for turn off of inductive loads
Both linear and switching operation are possible


Application

General controller for driving
lamps
motors
solenoids
heaters

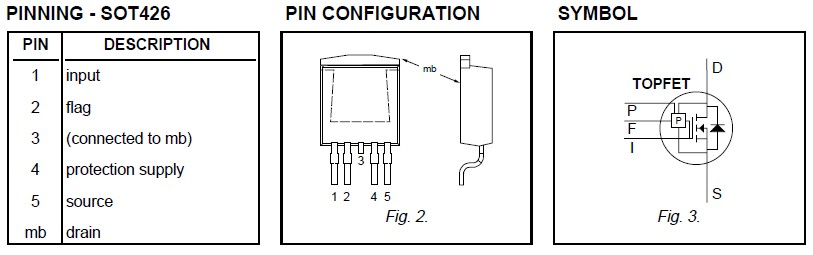

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS
MIN.
MAX.
UNIT

VDSS
VIS
VFS
VPS
ID
ID
IDRM
Ptot
Tstg
Tj
Tslod

 Voltages
Continuous off-state drain source voltage1
Continuous input voltage
Continuous flag voltage
Continuous supply voltage
Currents
Continuous drain current
Continuous drain current
Repetitive peak on-state drain current
Thermal
Total power dissipation
Storage temperature
Junction temperature2
Lead temperature		 VIS = 0 V
-
-
-
            VIS =
Tmb 25
Tmb 100
Tmb 25
Tmb = 25
-
continuous
during soldering
-
0
0
0
50
11
11
11
V
V
V
V
V
A
A
A
W


-
7
5
-
-
-
15
9.5
6.
13
8.5
54
-
-55
-
-
40
150
150
250



Description

Monolithic temperature and overload protected logic level power MOSFET BUK114-50L in a 5 pin surface mounting plastic envelope, intended as a general purpose switch for automotive systems and other applications.
