BUK109-50GS

Features: *Vertical power DMOS output stage*Low on-state resistance*Overload protection against over temperature*Overload protection against short circuit load*Latched overload protection reset by input*5 V logic compatible input level*Control of power MOSFET and supply of overload protect...

product image

BUK109-50GS Picture
See larger image
SeekIC No. : 004304160 Detail

BUK109-50GS: Features: *Vertical power DMOS output stage*Low on-state resistance*Overload protection against over temperature*Overload protection against short circuit load*Latched overload protection reset ...

BUK109-50GS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BUK109-50GS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Vertical power DMOS output stage
*Low on-state resistance
*Overload protection against over temperature
*Overload protection against short circuit load
*Latched overload protection reset by input
*5 V logic compatible input level
*Control of power MOSFET and supply of overload protection circuits derived from input
*Lower operating input current permits direct drive by micro-controller
*ESD protection on input pin
*Overvoltage clamping for turn off of inductive loads


Application

General controller for driving
*lamps
*motors
*solenoids
*heaters

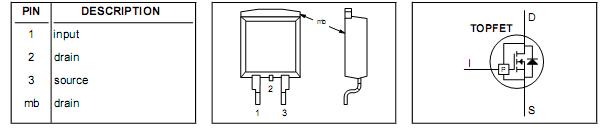

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDSS Continuous drain-source voltage1  -  - 50 V
VIS Continous iput voltage  -  0 11 V
ID Continous drain current  Tmb25;VIS=5V  - 29 A
ID Continous drain current  Tmb100;VIS=5V  - 18 A
IDRM Repetitive peak on-state drain current  Tmb25;VIS=5V  - 120 A
PD Total power dissipation  Tmb25  - 75 W
Tstg Storage temperature  -  -55 150
Tj Continuous junction temperature2  normal operation  - 150
Tsold Lead temperature  during soldering  - 250



Description

Monolithic temperature and overload protected logic level power MOSFET BUK109-50GS in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.
