Product Details

Description



Features:

*Vertical power DMOS output stage
*Low on-state resistance
*Overload protection against over temperature
*Overload protection against short circuit load
*Latched overload protection reset by input
*5 V logic compatible input level
*Control of power MOSFET and supply of overload protection circuits derived from input
*Lower operating input current permits direct drive by micro-controller
*ESD protection on input pin
*Overvoltage clamping for turn off of inductive loads


Application

General controller for driving
*lamps
*motors
*solenoids
*heaters

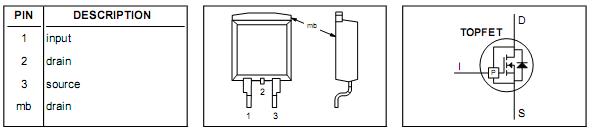

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS Continuous drain-source voltage1  -  - 50 V
VIS Continous iput voltage  -  0 6 V
ID Continous drain current  Tmb25;VIS=5V  - 13.5 A
ID Continous drain current  Tmb100;VIS=5V  - 8.5 A
IDRM Repetitive peak on-state drain current  Tmb25;VIS=5V  - 54 A
PD Total power dissipation  Tmb25  - 40 W
Tstg Storage temperature  -  -55 150
Tj Continuous junction temperature2  normal operation  - 150
Tsold Lead temperature  during soldering  - 250



Description

Monolithic temperature and overload protected logic level power MOSFET BUK108-50GL in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.
