Product Details

Description

Application

General controller for driving
*lamps
*motors
*solenoids
*heaters

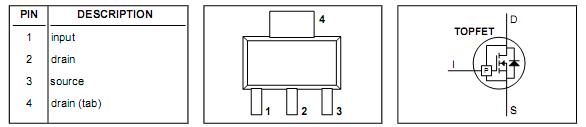

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_DS	Continuous drain source voltage¹	-	-	50	V
I_D	Continuous drain current²	-	-	self limiting	A
I_I	Continuous input current	clamping	-	3	mA
I_IRM	Non-repetitive peak iput current	t_p1ms	-	10	mA
P_D	Total power dissipation	T_amb=25	-	1.8	W
T_stg	Storage temperature	-	-55	150
T_j	Continuous junction temperature	normal operation³	-	150

Description

Monolithic temperature and overload protected logic level power MOSFET BUK107-50DL in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.
