BUK101-50GS

Gate-Source Breakdown Voltage :
Transistor Polarity : N-Channel
Configuration : Single
Mounting Style : Through Hole
Maximum Operating Temperature : + 150 C
Package / Case : TO-220AB
Drain-Source Breakdown Voltage : 50 V
Continuous Drain Current : 29 A
Packaging : Rail
Resistance Drain-Source RDS (on) : 0.06 Ohms


Features:

*Vertical power DMOS output stage
*Low on-state resistance
*Overload protection against over temperature
*Overload protection against short circuit load
*Latched overload protection reset by input
*5 V logic compatible input level
*Control of power MOSFET and supply of overload protection circuits derived from input
*Lower operating input current permits direct drive by micro-controller
*ESD protection on input pin
*Overvoltage clamping for turn off of inductive loads


Application

General controller for driving
*lamps
*motors
*solenoids
*heaters

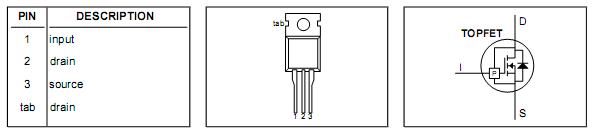

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VDSS	Continuous drain-source voltage1	-	-	50	V
VIS	Continous iput voltage	-	0	11	V
ID	Continous drain current	Tmb25;VIS=5V	-	29	A
ID	Continous drain current	Tmb100;VIS=5V	-	18	A
IDRM	Repetitive peak on-state drain current	Tmb25;VIS=5V	-	120	A
PD	Total power dissipation	Tmb25	-	75	W
Tstg	Storage temperature	-	-55	150
Tj	Continuous junction temperature2	normal operation	-	150
Tsold	Lead temperature	during soldering	-	250

Description

Monolithic temperature and overload protected logic level power MOSFET BUK101-50GS in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.
