Product Details

Description

Pinout

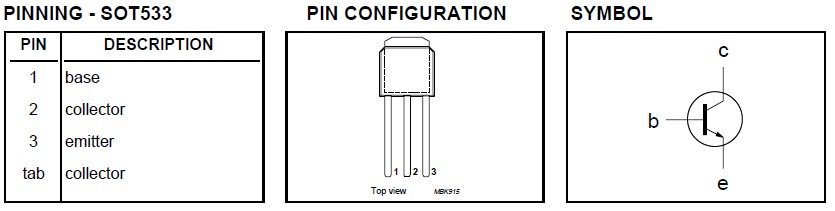

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
V_CESM V_CEO V_CBO I_C I_CM I_B I_BM P_tot T_stg T_j	Collector to emitter voltage Collector to emitter voltage (open base) Collector to base voltage (open emitter) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Total power dissipation Storage temperature Junction temperature	V_BE=0V T_hs25	- - - - - - - - -65 -	700 400 700 4 8 2 4 50 150 150	V V V A A A A W

Description

High-voltage, high-speed planar-passivated npn power switching transistor BUJ103AU in the SOT533 envelope intended for use in high frequency electronic lighting ballast applications, converters, inverters, switching regulators, motor control systems, etc.
