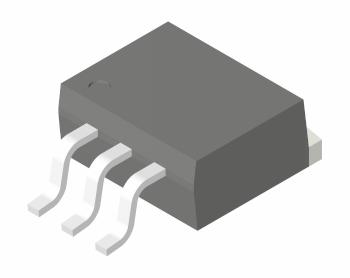

See larger image

SeekIC No. : 00216777 Detail

BUB323ZT4G: Transistors Darlington 10A 350V Bipolar Power NPN

BUB323ZT4G Data Sheet

US $ .72~1.54 / Piece | Get Latest Price

Part Number:: BUB323ZT4G
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500
500~800

Unit Price
$1.54
$1.31
$.85
$.72
$.72

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BUB323ZG evaluate
US $.72 - 1.94 / Piece

Transistors Darlington 10A 350V Bipolar Power NPN
BUB323ZT4 evaluate
Transistors Darlington 10A 350V Bipolar
BUB323Z evaluate
Transistors Darlington 10A 350V Bipolar

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	NPN
Collector- Emitter Voltage VCEO Max :	350 V	Emitter- Base Voltage VEBO :	6 V
Maximum DC Collector Current :	10 A	Power Dissipation :	150 W
Maximum Operating Temperature :	+ 150 C	Mounting Style :	SMD/SMT
Package / Case :	TO-263-3 (D2PAK)	Packaging :	Reel

Description

Collector- Base Voltage VCBO :
Maximum Collector Cut-off Current :
Transistor Polarity : NPN
Mounting Style : SMD/SMT
Packaging : Reel
Configuration : Single
Maximum Operating Temperature : + 150 C
Maximum DC Collector Current : 10 A
Collector- Emitter Voltage VCEO Max : 350 V
Power Dissipation : 150 W
Emitter- Base Voltage VEBO : 6 V
Package / Case : TO-263-3 (D2PAK)

Parameters:

Technical/Catalog Information	BUB323ZT4G
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN - Darlington
Voltage - Collector Emitter Breakdown (Max)	350V
Current - Collector (Ic) (Max)	10A
Power - Max	150W
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 6.5A, 1.5V
Vce Saturation (Max) @ Ib, Ic	1.7V @ 250mA, 10A
Frequency - Transition	2MHz
Current - Collector Cutoff (Max)	100A
Mounting Type	Surface Mount
Package / Case	D²Pak, SMD-220, TO-263 (3 leads + tab)
Packaging	Cut Tape (CT)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BUB323ZT4G BUB323ZT4G BUB323ZT4GOSCT ND BUB323ZT4GOSCTND BUB323ZT4GOSCT
