BU9729K

Features: · Serial interface (8-bit length).· Display RAM: 72bits, internal (up to 72 segments can be displayed).· Internal power supply circuit for liquid crystal drive.· Display duty: 1 / 4.· Low-voltage and low-current operation supported.Application·Movie projectors, car audio equipment, telep...

product image

BU9729K Picture
See larger image
SeekIC No. : 004304017 Detail

BU9729K: Features: · Serial interface (8-bit length).· Display RAM: 72bits, internal (up to 72 segments can be displayed).· Internal power supply circuit for liquid crystal drive.· Display duty: 1 / 4.· Low-...

BU9729K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BU9729K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Serial interface (8-bit length).
· Display RAM: 72bits, internal (up to 72 segments can be displayed).
· Internal power supply circuit for liquid crystal drive.
· Display duty: 1 / 4.
· Low-voltage and low-current operation supported.


Application

·Movie projectors, car audio equipment, telephones

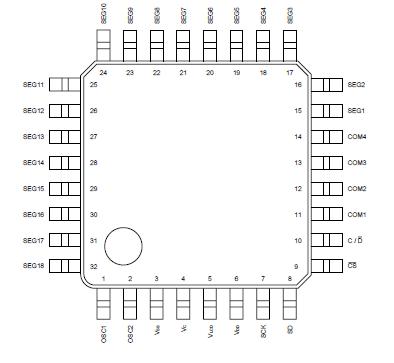

Pinout

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage 1 VDD 0.3 ~ + 7.0 V
Power supply voltage 2 VLCD 0.3 ~ + 7.0*1 V
Power dissipation Pd 400*2 mW
Operating temperature Topr 25 ~ + 75
Storage temperature Tstg 50 ~ + 125
Input voltage VIN 0.3 ~ VDD + 0.3 V
Output voltage VOUT 0.3 ~ VDD + 0.3 V
*1 The condition VLCD ^ VC ^ VSS must be satisfied.
*2 Reduced by 4.0mW for each increase in Ta of 1 over 25.


Description

The BU9729K is a driver for segmented liquid crystal displays, which enables connection with a microcomputer
through a serial interface. 4-bit common output and an internal power supply circuit for LCD drive make BU9729K possible to
configure a low-cost display system.
