BU8874: Telephone Ringers DTMF RX 4.19MHZ 5V 8-PIN

BU8874 Data Sheet

US $ .95~.95 / Piece | Get Latest Price

Part Number:: BU8874
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~2000

Unit Price
$.95

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BU8871F evaluate
Features: ·Dynamic range of 45dB. (internal AGC)·4-bit binary serial data output.·Guard time can b...
BU8871F-E2 evaluate
Telephone Ringers DTMF RECEIVER
BU8872 evaluate
US $.68 - .68 / Piece

IC DTMF RECEIVER FOR PHONE DIP8

Product Details

Quick Details

Product :	DTFM Transceiver	Package / Case :	PDIP-8
Frequency :	4.19 MHz	Maximum Operating Temperature :	+ 70 C
Minimum Operating Temperature :	- 10 C	Packaging :	Bulk

Description

Package / Case : PDIP-8
Maximum Operating Temperature : + 70 C
Product : DTFM Transceiver
Frequency : 4.19 MHz
Minimum Operating Temperature : - 10 C
Packaging : Bulk

Features:

· Dynamic range of 45dB. (internal AGC)
· Power down mode.
· 4-bit binary serial data output.
· Guard time can be controlled through host microcontroller.
· Input pins equipped with hysteresis. (ACK pin)
· 4.19MHz crystal resonator can be used.
·8-pin DIP package. (BU8874)

Application

·Telephone answering machines

Pinout

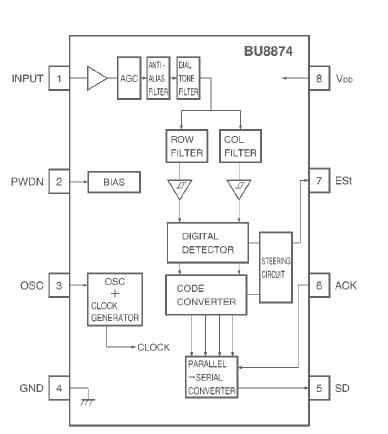

Connection Diagram

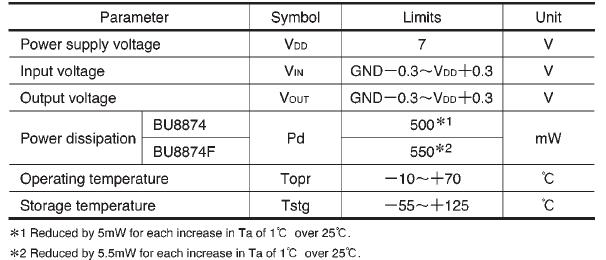

Specifications

Connection Diagram

Description

The BU8874 and BU8874F are DTMF receiver ICs developed for use in telephone answering machines, and convert
16 different types of DTMF signals into 4-bit binary serial data. In addition to a compact 8-pin DIP (BU8874) package,
these receivers feature a wide dynamic range, eliminating the need for an external input amplifier. Expertise from a number of companies has been incorporated into these products to enable guard time control through a host microcontroller.

Parameters:

Technical/Catalog Information	BU8874
Vendor	ROHM
Category	ICs, Integrated Circuits, Semiconductors
Application	Telecommunication
Type	Receiver
Mounting Type	Through Hole
Package Name	8-DIP
Supply Voltage	5.00 V [Typ]
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU8874 BU8874
