BU8315S

Features: 1) LED interface (14-bit serial in/parallel out). 2) Built-in LED automatic flashing function.ApplicationSets with operation panels, such as telephones, facsimile machines, and copying machinesPinoutSpecifications Parameter Symbol Limits Unit Conditions Power supply voltage ...

product image

BU8315S Picture
See larger image
SeekIC No. : 004303962 Detail

BU8315S: Features: 1) LED interface (14-bit serial in/parallel out). 2) Built-in LED automatic flashing function.ApplicationSets with operation panels, such as telephones, facsimile machines, and copying mac...

BU8315S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BU8315S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) LED interface (14-bit serial in/parallel out).
2) Built-in LED automatic flashing function.


Application

Sets with operation panels, such as telephones, facsimile machines, and copying machines


Pinout

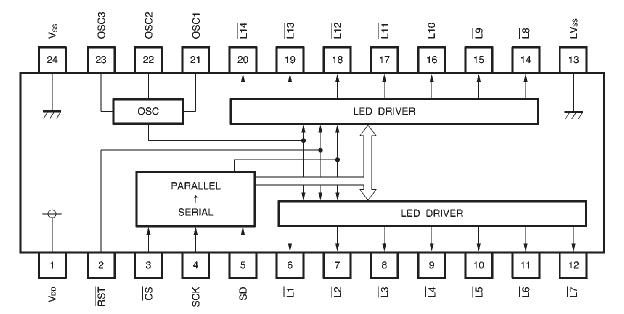

Connection Diagram


Specifications

Parameter Symbol Limits Unit Conditions
Power supply voltage VDD 7.0 V
Power dissipation BU8315S Pd 1050*1 mW
BU8315F 450*2
Operating temperature Topr -25~+75
Storage temperature Tstg -55~+125
Input voltage VIN VSS-0.3~VDD+0.3 V CS,SCK,SD,RST pins
Output voltage VOUT VSS~7.0 V L1~L14 pins
Input current IOUT 20 mA L1~L14 pins

*1 Reduced by 10.5mW for each increase in Ta of 1 over 25.
*2 Reduced by 4.5mW for each increase in Ta of 1 over 25.


Description

The BU8315S and BU8315F are LED drivers with a flashing function.

BU8315S can be connected in series to panel PCBs in equipment such as telephones, facsimile machines, and copying machines, and to microcomputers of main PCBs, and significantly reduce the amount of wiring required.
