BU508AW: Transistors Bipolar (BJT) Hi Vltg NPN Pwr transistor

BU508AW Data Sheet

US $ 1.12~1.69 / Piece | Get Latest Price

Part Number:: BU508AW
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250

Unit Price
$1.69
$1.36
$1.24
$1.12

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BU500 evaluate
BU505 evaluate
US $.67 - .81 / Piece

Transistors Bipolar (BJT) NPN Multiepitaxial Fast Swtch Trnsistr
BU505D evaluate
Application* Horizontal deflection circuits of colour television receivers.Specifications Sym...

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	700 V
Emitter- Base Voltage VEBO :	9 V	Maximum DC Collector Current :	8 A
Configuration :	Single	Maximum Operating Temperature :	+ 150 C
Mounting Style :	Through Hole	Package / Case :	TO-247
Packaging :	Tube

Description

Maximum Operating Frequency :
DC Collector/Base Gain hfe Min :
Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Packaging : Tube
Maximum DC Collector Current : 8 A
Package / Case : TO-247
Emitter- Base Voltage VEBO : 9 V
Collector- Emitter Voltage VCEO Max : 700 V

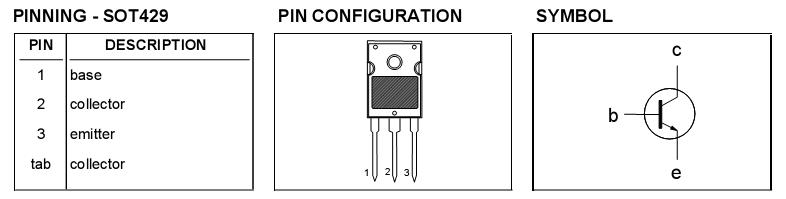

Pinout

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CESM V_CEO I_C I_CM I_B I_BM Ptot Tstg Tj	Collector-emitter voltage peak value Collector-emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Total power dissipation Storage temperature Junction temperature	V_BE = 0 V T_mb 25	- - - - - - - -65 -	1500 700 8 15 4 6 125 150 150	V V A A A A W

Description

High voltage, high-speed switching npn transistors BU508AW in a plastic envelope, primarily for use in horizontal deflection circuits of colour television receivers.

Parameters:

Technical/Catalog Information	BU508AW
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	700V
Current - Collector (Ic) (Max)	8A
Power - Max	125W
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic	1V @ 1.6A, 4.5A
Frequency - Transition	-
Current - Collector Cutoff (Max)	200A
Mounting Type	Through Hole
Package / Case	TO-247
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU508AW BU508AW 497 7196 5 ND 49771965ND 497-7196-5
