BU4530AL

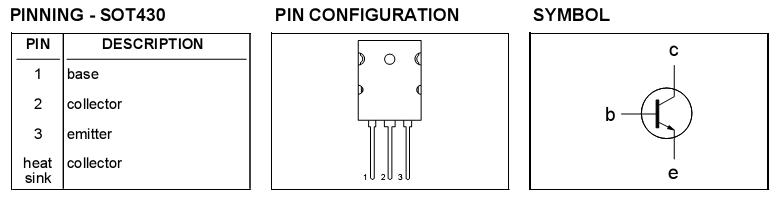

Pinout




Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
VCESM VCEO IC ICM IB IBM Ptot Tstg Tj	Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Total power dissipation Storage temperature Junction temperature	VBE=0V Tmb25	- - - - - - - - - -65 -	1500 800 16 40 10 15 125 150 150	V V A A A A W

Description

Enhanced performance, new generation, high-voltage, high-speed switching npn transistor BU4530AL in a plastic envelope intended for use in horizontal deflection circuits of colour television receivers and p.c monitors. Features of BU4530AL exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation.
