BU4528BF

Features:

1) Low power dissipation.
2) Wide range of operating power supply voltages.
3) High input impedance.
4) High fan-out.
5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.

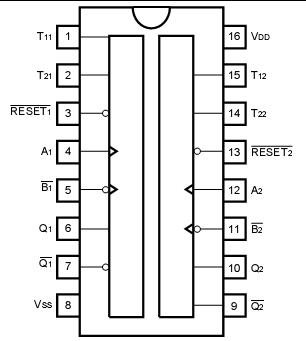

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	VDD	0.3 ~ + 18	V
Power dissipation	Pd	1000 (DIP), 500 (SOP)	mW
Operating temperature	Topr	40 ~ + 85
Storage temperature	Tstg	55 ~ + 150
Input voltage	VIN	0.3 ~ VDD + 0.3	V

Description

The BU4528B and BU4528BF are monostable multivibrators with trigger and reset functions that can be activated. Each chip has two built-in circuits.

Triggers BU4528BF can initiate both rising and falling in response to Input A and Input B. As the output monostable pulse width is determined by the time constant of the external resistance (Rx) and the capacitor (Cx), a wide range of output pulse widths can be set.

Setting the RESET input to "L" enables external asynchronous resetting and this RESET input can be utilized to reduce the time from the trigger disable input or the power on until the BU4528B and BU4528BF are ready for monostable operation.
