BU4093BFV

Features:

1) Low power dissipation.
2) Wide range of operating power supply voltages.
3) High input impedance.
4) High fan-out.
5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.

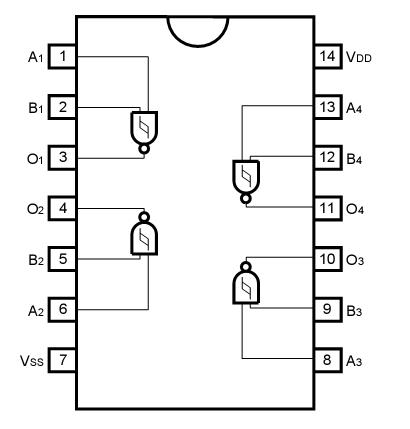

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	VDD	0.3 ~ + 18	V
Power dissipation	Pd	1000 (DIP), 450 (SOP), 350 (SSOP)	mW
Operating temperature	Topr	40 ~ + 85
Storage temperature	Tstg	55 ~ + 150
Input voltage	VIN	0.3 ~ VDD + 0.3	V

Description

The BU4093B, BU4093BF, and BU4093BFV are 4-circuit, 2-input NAND gates whose input pins all have a Schmitt trigger function.

As the circuit threshold voltages are different when the input waveform rises and when it falls (V_IH, V_IL), BU4093BFV can be used for line receivers, waveform rectification, multivibrators, and other purposes in addition to the customary usage as a NAND gate. They may be used in place of the BU4011B which uses the same pin connection.
