Product Details

Description



Features:

1) Low power dissipation.
2) Wide range of operating power supply voltages.
3) High input impedance.
4) High fan-out.
5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.

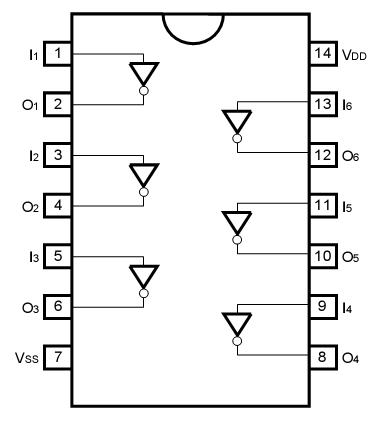

Pinout

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage VDD 0.3 ~ + 18 V
Power dissipation Pd 1000 (DIP), 450 (SOP), 350 (SSOP-B14) mW
Operating temperature Topr 40 ~ + 85
Storage temperature Tstg 55 ~ + 150
Input voltage VIN 0.3 ~ VDD + 0.3 V



Description

The BU4069UB, BU4069UBF and BU4069UBFV are six-circuit inverters with no buffers. A single-stage gate configuration reduces the propagation time.
