BU4066BCFV

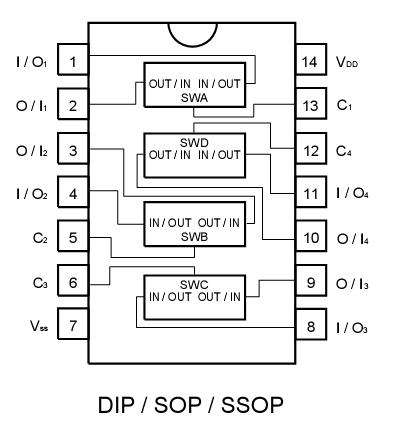

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	VDD	0.5 ~ + 20	V
Power dissipation	Pd	1000(DIP), 450(SOP) 350(SSOP)	mW
Operating temperature	Topr	40 ~ + 85
Storage temperature	Tstg	55 ~ + 150
Input voltage	VIN	0.5 ~ VDD + 0.3	V

Description

The BU4066BC, BU4066BCF, and BU4066BCFV each consist of four independent switches capable of controlling either digital or analog signals. When Enable Input (CONT) is set to the "H" level, impedance of BU4066BCFV is low (ON status) between switch input and output, and when Enable Input (CONT) is set to the "L" level, impedance is high (OFF status). As the BU4066BC has a good propagation characteristic, BU4066BCFV can control large input voltage amplitudes. These switches can be used in analog and digital signal switching and in chopper modulator and demodulator circuits.
