BU3618K

Series: -
Number of Bits: 8
Mounting Type: Surface Mount
Sampling Rate (Per Second): *
Power Dissipation (Max): -
Voltage Supply Source: Analog and Digital
Data Interface: Parallel
Packaging: Tray
Number of Converters: 3
Number of Outputs and Type: 3 Current, Unipolar
Settling Time: 10ns
Manufacturer: Rohm Semiconductor
Package / Case: 44-QFP
Supplier Device Package: 44-QFP
Operating Temperature: -20°C ~ 75°C


Features:

1) 8-bit resolution.
2) Current output model.
3) Low power consumption.
4) High-speed operation enabled.
5) Internal reference voltage supply.
6) TTL input.


Application

Video-CDs, CD-Vs, CD karaoke sets

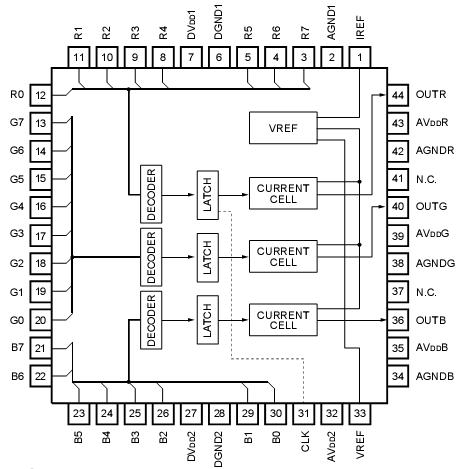

Pinout




Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	DVDD	0.5 ~ + 7.0	V
Analog power supply voltage	AVDD	DVDD 0.3 ~ DVDD + 0.3	V
Input voltage	VIN	0.5 ~ DVDD + 0.5	V
Output voltage	VOUT	0.5 ~ DVDD + 0.5	V
Storage temperature	Tstg	55 ~ + 125	mW
Power dissipation	PD	5001

1 Reduced by 5mW for each increase in Ta of 1°C over 25°C.


Description

The BU3618K is an RGB 3-channel, 8-bit D / A converter CMOS IC featuring high speed and low power consumption. An internal reference voltage supply eliminates the need to provide an external reference voltage supply.


Parameters:

Technical/Catalog Information	BU3618K
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Data Interface	Parallel
Number of Bits	8
Operating Temperature	-20°C ~ 75°C
Package / Case	44-QFP
Packaging	Bulk
Voltage Supply Source	Analog and Digital
Settling Time	10ns
Drawing Number	*
Number of Converters	3
Power Dissipation (Max)	-
Number of Outputs and Type	3 Current, Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU3618K BU3618K
