Product Details

Description



Pinout

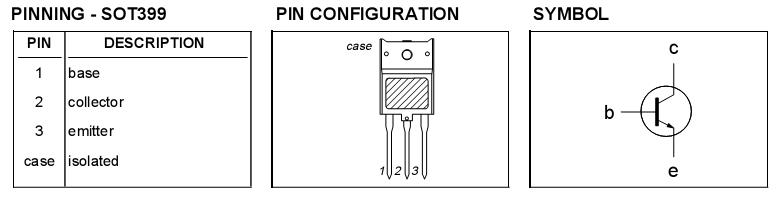

Connection Diagram




Specifications

SYMBOL PARAMETER CONDTIONS
MIN.
MAX.
UNIT

VCESM
VCEO
IC
ICM
IB
IBM
-IB(AV)
IBM
Ptot
Tstg
Tj

 Collector to emitter voltage
Collector to emitter voltage (open base)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Reverse base current
Reverse base current peak value1
Total power dissipation
Storage temperature
Junction temperature		 VBE=0V
average over any 20 ms period
Ths25
-
-
-
-
-
-
-
-
-
-65
-
1700
825
10
25
10
14
150
6
45
150
150
V
V
A
A
A
A
mA
A
W






Description

High voltage, high-speed switching npn transistor BU2720DF in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers. Designed to withstand VCES pulses up to 1700V.
