Product Details

Description

Pinout

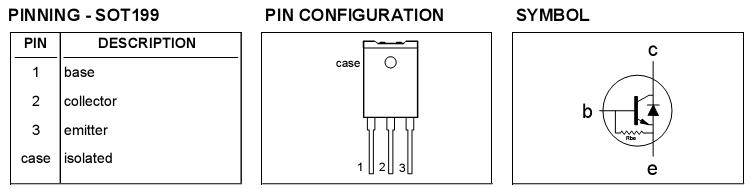

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
V_CESM V_CEO I_C I_CM I_B I_BM -I_BM P_tot T_stg T_j	Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Reverse base current Reverse base current peak value¹ Total power dissipation Storage temperature Junction temperature	V_BE=0V T_hs25	- - - - - - - - - -65 -	1700 825 8 15 4 6 5 45 150 150	V V A A A A A W

Description

High voltage, high-speed switching npn transistor BU2708DF with integrated damper diode in a plastic full-pack envelope.

Intended for use in horizontal deflection circuits of colour television receivers. Features of BU2708DF exceptional tolerance to base drive and collector current load variations resulting in a low worst case dissipation. Designed to withstand V_CESpulses up to 1700V.
