BU2618FV

Features: 1) Built-in high-speed prescaler can divide 130 MHzVCO.2) Low current dissipation (during operation: 1.5mA, PLL OFF: 200A Typ.)3) Seven standard frequencies: 25kHz, 12.5kHz, 6.25kHz, 10kHz, 9kHz, 5kHz, and 1kHz.4) Counter for intermediate frequency detection.5) Unlock detection circuit.6...

product image

BU2618FV Picture
See larger image
SeekIC No. : 004303266 Detail

BU2618FV: Features: 1) Built-in high-speed prescaler can divide 130 MHzVCO.2) Low current dissipation (during operation: 1.5mA, PLL OFF: 200A Typ.)3) Seven standard frequencies: 25kHz, 12.5kHz, 6.25kHz, 10kHz...

BU2618FV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BU2618FV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Built-in high-speed prescaler can divide 130 MHzVCO.
2) Low current dissipation (during operation: 1.5mA, PLL OFF: 200A Typ.)
3) Seven standard frequencies: 25kHz, 12.5kHz, 6.25kHz, 10kHz, 9kHz, 5kHz, and 1kHz.
4) Counter for intermediate frequency detection.
5) Unlock detection circuit.
6) Four output ports.
7) Serial data input (CE, CK, DA)


Application

FM multiplex radio receivers, pagers, radios, and other signal generators

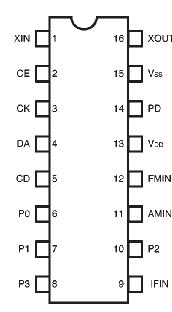

Pinout

Connection Diagram


Specifications

Parameter Symbol Limits Unit Condltions
Power supply voltage VDD -0.3~+7.0 V VDD
Maximum input voltage1 VIN1 -0.3~+7.0 V CE,CK,DA
Maximum input voltage2 VIN2 -0.3~VDD+0.3 V XIN,FMIN,AMIN,IFIN
Maximum output voltage1 VOUT1 -0.3~+10.0 V P0,P1,P2,P3,CD
Maximum output voltage2 VOUT2 -0.3~VDD+0.3 V PD,XOUT
Maximum output current IOUT 0~+3.0 mA P0,P1,P2,P3,CD
Power dissipation PD 350* mW
Operating temperature Topr -25~+75
Storage temperature Tstg -55~+125

*Reduced by 3.5mW for each increase in Ta of 1 over 25




Description

The BU2618FV is a low current dissipation PLL frequency synthesizer designed for use in FM multiplex radio receiver and FM pager receiver. Featuring of BU2618FV very small package and built-in prescaler that can operate at up to 130MHz.
