BU2616F

Features: 1) Built-in high-speed prescaler can divide 130MHzVCO.2) Low current dissipation (during operation: 6mA PLL OFF: 1mA)3) In addition to the standard FM and AM, also offers the following 7 frequencies: 25kHz, 12.5kHz, 6.25kHz, 10kHz, 9kHz, 5kHz, and 1kHz.4) SD (station detector) input circ...

product image

BU2616F Picture
See larger image
SeekIC No. : 004303265 Detail

BU2616F: Features: 1) Built-in high-speed prescaler can divide 130MHzVCO.2) Low current dissipation (during operation: 6mA PLL OFF: 1mA)3) In addition to the standard FM and AM, also offers the following 7 f...

BU2616F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BU2616F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Built-in high-speed prescaler can divide 130MHzVCO.
2) Low current dissipation (during operation: 6mA PLL OFF: 1mA)
3) In addition to the standard FM and AM, also offers the following 7 frequencies: 25kHz, 12.5kHz, 6.25kHz, 10kHz, 9kHz, 5kHz, and 1kHz.
4) SD (station detector) input circuit.
5) Intermediate frequency detection circuit
6) Charge pump output control circuit
7) Four output ports (Nch open drain).
8) Serial data input (CE, CK, DA)


Application

Tuners (Mini components, radio cassette players, radio equipment, etc.)


Pinout

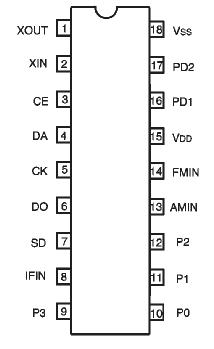

Connection Diagram


Specifications

Parameter Symbol Limits Unit Condltions
Power supply voltage VDD -0.3~+7.0 V VDD
Maximum input voltage1 VIN1 -0.3~+7.0 V CE,CK,DA,SD
Maximum input voltage2 VIN2 -0.3~VDD+0.3 V XIN,FMIN,AMIN,IFIN
Maximum output voltage1 VOUT1 -0.3~+10.0 V P1,P2,DO
Maximum output voltage2 VOUT2 -0.3~VDD0.3 V PD1,PD2,XOUT
Maximum output current IOUT 0~+3.0 mA P0,P1,P2,P3,DO
Power dissipation PD 450* mW
Operating temperature Topr -10~+75
Storage temperature Tstg -55~+125

*Reduced by 4.5mW for each increase in Ta of 1 over 25




Description

BU2616F PLL frequency synthesizers work up through the FM band.

Featuring low power dissipation and highly sensitive built-in RF amps, they detect intermediate frequencies.
