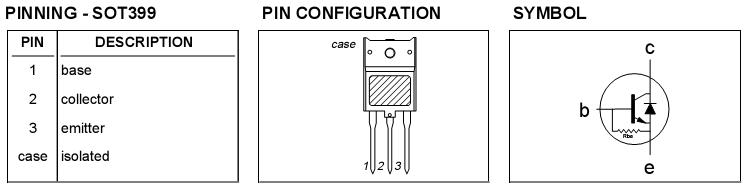

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
V_CESM V_CEO I_C I_CM I_B I_BM -I_B(AV)I_BM P_tot T_stg T_j	Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Reverse base current Reverse base current peak value1 Total power dissipation Storage temperature Junction temperature	V_BE=0V average over any 20 ms period T_hs25	- - - - - - - - - -55 -	1500 800 10 25 6 9 150 6 45 150 150	V V A A A A mA A W

Description

New generation, high-voltage, high-speed switching npn transistor BU2520DX with an integrated damper diode in a full plastic envelope intended for use in horizontal deflection circuits of large screen colour television receivers.
