BU1924

Features: 1) Low current.2) Two-stage anti-aliasing filter (LPF).3) 57kHz band-pass filter.4) DSB demodulation (digital PLL).5) Quality indication output for demodulated data.ApplicationRDS / RBDS compatible FM receivers for American and European markets, car stereos, high-fidelity stereo systems ...

product image

BU1924 Picture
See larger image
SeekIC No. : 004303153 Detail

BU1924: Features: 1) Low current.2) Two-stage anti-aliasing filter (LPF).3) 57kHz band-pass filter.4) DSB demodulation (digital PLL).5) Quality indication output for demodulated data.ApplicationRDS / RBDS c...

BU1924 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BU1924
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Low current.
2) Two-stage anti-aliasing filter (LPF).
3) 57kHz band-pass filter.
4) DSB demodulation (digital PLL).
5) Quality indication output for demodulated data.


Application

RDS / RBDS compatible FM receivers for American and European markets, car stereos, high-fidelity stereo systems and components, and FM pagers.

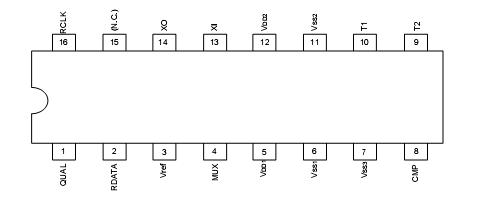

Pinout

Connection Diagram


Specifications

 Parameter  Symbol  Limits  Unit Conditions
Power supply voltage VDD -0.3~+7.0 V VDD1 VDD2
Maximum input voltage VMAX -0.3~VDD+0.3 V All input pins
Maximum output voltage IMAX ±4.0 mA All output pins
Power dissipation Pd 350* mW

-

Operating temperature Topr -40~+85   -
Storage temperature Tstg -55~+125   -

*Reduced by 3.5mW for each increase in Ta of 1 over 25


Description

The BU1924 and BU1924F are RDS / RBDS decoders that employ a digital PLL and have a built-in anti-aliasing filter and an eight-stage BPF (switched-capacitor filter). Linear CMOS circuitry is used for low power consumption.
