BU1920F

Features: 1) Low current dissipation.2) Two-stage anti-aliasing filter.3) 57kHz bandpass filter.4) DSB demodulation (digital PLL).5) ARI signal discrimination.6) Quality indication output for demodulated data.ApplicationRDS/RBDS compatible FM receivers for Europe and North America, car stereo syst...

product image

BU1920F Picture
See larger image
SeekIC No. : 004303149 Detail

BU1920F: Features: 1) Low current dissipation.2) Two-stage anti-aliasing filter.3) 57kHz bandpass filter.4) DSB demodulation (digital PLL).5) ARI signal discrimination.6) Quality indication output for demodu...

BU1920F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BU1920F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Low current dissipation.
2) Two-stage anti-aliasing filter.
3) 57kHz bandpass filter.
4) DSB demodulation (digital PLL).
5) ARI signal discrimination.
6) Quality indication output for demodulated data.


Application

RDS/RBDS compatible FM receivers for Europe and North America, car stereo systems, home stereo systems and FM pagers.

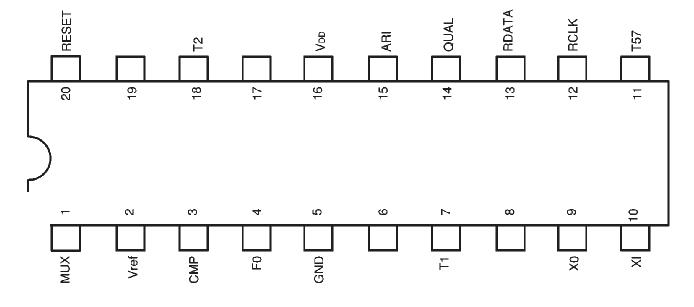

Pinout

Connection Diagram


Specifications

 Parameter   Symbol   Limits   Unit
 Power supply voltage  VDD  -0.3~+7.0  V
 Maximum input voltage  VMAX.  -0.3~VDD+0.3*1  V
 Maximum output current  IMAX.  ±4.0*2  mA
 Power dissipation  Pd  350*3  mW
 Operating temperature  Topr  -40~+85
 Storage temperature  Tstg  -55~+125

*All input/output pins.
*All output pins.
*Reduced by 3.5mW for each increase in Ta of 1 over 25


Description

The BU1920, BU1920F and BU1920FS are RDS / RBDS decoders that employ a digital PLL. It has a built-in anti-aliasing filter and an eight-stage BPF (switched-capacitor filter). Linear CMOS circuitry is used for low current dissipation.
