BU1507DX

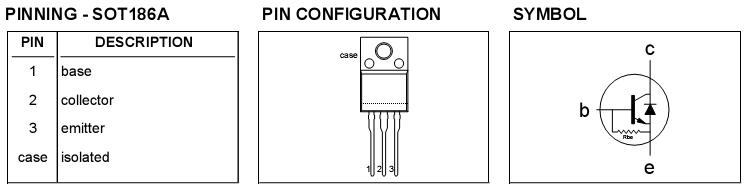

Pinout




Specifications

SYMBOL	PARAMETER	CONDTIONS	MIN.	MAX.	UNIT
VCESM VCEO IC ICM IB IBM -IB(AV) IBM Ptot Tstg Tj	Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Reverse base current Reverse base current peak value1 Total power dissipation Storage temperature Junction temperature	VBE=0V average over any 20 ms period Ths25	- - - - - - - - - -65 -	1500 700 8 15 4 6 100 5 35 150 150	V V A A A A mA A W

Description

Enhanced performance, new generation, high-voltage, high-speed switching npn transistor BU1507DX with an integrated damper diode in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers and computer monitors. Features of BU1507DX exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation.
