BTW69

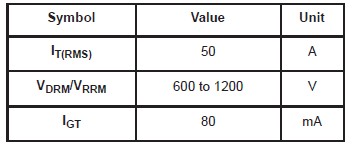

Features:




Specifications

Symbol	Parameter			Value	Unit
IT(RMS)	RMS on-state current (180° conduction angle)	RD91	Tc = 70°C	50	A
		TOP3 lns.	Tc = 75°C
IT(AV)	Average on-state current (180° conduction angle)	RD91	Tc = 70°C	32	A
		TOP3 lns.	Tc = 75°C
ITSM	Non repetitive surge peak on-state current	tp=8.3ms	Tj = 25°C	610	A
		tp=10ms		580
I²t	I²t Value for fusing		Tj = 25°C	1680	A2S
dI/dt	Critical rate of rise of on-state current IG = 2 x IGT , tr 100 ns	F=60Hz	Tj = 125°C	50	A/s
IGM	Peak gate current	tp=20s	Tj = 125°C	8	A
PG(AV)	Average gate power dissipation		Tj = 125°C	1	W
Tstg Tj	Storage junction temperature range Operating junction temperature range			-40 to + 150 -40 to + 125	°C
VRGM	Maximum peak reverse gate voltage			5	V

Description

Available in high power packages, the BTW67 / BTW69 Series is suitable in applications where power handling and power dissipation are critical, such as solid state relays, welding equipment, high power motor control.

Based on a clip assembly technology, BTW69 offer a superior performance in surge current handling capabilities.

Thanks to their internal ceramic pad, BTW69 provide high voltage insulation (2500V RMS), complying with UL standards (file ref: E81734).
