BTS 441 R

Application•µC compatible power switch for 5V, 12 V and 24 V DC applications •All types of resistive, inductive and capacitve loads •Most suitable for loads with high inrush currents, so as lamps •Replaces electromechanical relays, fuses and discrete circuits PinoutSp...

product image

BTS 441 R Picture
See larger image
SeekIC No. : 004303048 Detail

BTS 441 R: Application•µC compatible power switch for 5V, 12 V and 24 V DC applications •All types of resistive, inductive and capacitve loads •Most suitable for loads with high inrush ...

BTS 441 R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BTS 441 R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

•µC compatible power switch for 5V, 12 V and 24 V DC applications
•All types of resistive, inductive and capacitve loads
•Most suitable for loads with high inrush currents, so as lamps
•Replaces electromechanical relays, fuses and discrete circuits

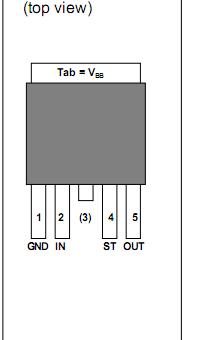

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Values
Unit
Supply voltage (overvoltage protection see page 4) Vbb
43
V
Supply voltage for full short circuit protection
Tj Start=-40 ...+150°C
Vbb
34
V
Load dump protection1) VLoadDump = VA + Vs, VA = 13.5 V
RI2)= 2 Ω, R = 0.5 Ω, t = 200 ms, IN= low or high

VLoad dump3)
60
V
Load current (Current limit, see page 5) IL
self-limited
A
Operating temperature range
Storage temperature range


Tj
Tstg
-40 ...+150
-55 ...+150
°C
Power dissipation (DC), TC 25 °C Ptot
125
W
Maximal switchable inductance, single pulse
Vbb = 12V, T j,start = 150°C, TC = 150°C const.
(See diagram on page 9) IL(ISO) = 21 A, RL = 0 Ω; E4)AS=0.7J:


ZL
21
mH
Electrostatic discharge capability                                 (ESD) IN:
                                                      (Human Body Model) ST:
                                              out to all other pins shorted:
acc. MIL-STD883D, method 3015.7 and
ESD assn. std. S5.1-1993; R=1.5kΩ; C=100pF

VESD




1.0
4.0
8.0
kV





Input voltage (DC)
Current through input pin (DC)
Current through status pin (DC)
see internal circuit diagrams page 7


 IIN
IST


-10 ... +16
±2.0
±5.0
V
mA


Thermal resistance                                             chip - case:
                                                junction - ambient (free air):
                                             SMD version, device on pcb5): 		RthJC
RthJA
1
75
33
K/W




Description

The BTS 441 R features are as follows:

•N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS® technology.
•Providing embedded protective functions.
