BTS5234L

Power Switch ICs - Power Distribution PWR SWITCH HI-SIDE 3.35A 14PIN

product image

BTS5234L Picture
See larger image
SeekIC No. : 00629486 Detail

BTS5234L: Power Switch ICs - Power Distribution PWR SWITCH HI-SIDE 3.35A 14PIN

BTS5234L Data Sheet

floor Price/Ceiling Price

US $ 2~3.04 / Piece | Get Latest Price
Part Number:
BTS5234L
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $3.04
  • $2.71
  • $2.22
  • $2
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Outputs : 2 On Resistance (Max) : 60 mOhms
On Time (Max) : 250 us Off Time (Max) : 250 us
Operating Supply Voltage : 4.5 V to 28 V Supply Current (Max) : 4 mA
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : DSO-12

Description

Mounting Style : SMD/SMT
Number of Outputs : 2
On Resistance (Max) : 60 mOhms
Maximum Operating Temperature : + 150 C
Operating Supply Voltage : 4.5 V to 28 V
On Time (Max) : 250 us
Package / Case : DSO-12
Off Time (Max) : 250 us
Supply Current (Max) : 4 mA


Features:

• Very low standby current
• 3.3 V and 5 V compatible logic pins
• Improved electromagnetic compatibility (EMC)
• Stable behavior at under voltage
• Logic ground independent from load ground
• Secure load turn-off while logic ground disconnected
• Optimized inverse current capability


Application

• C compatible high-side power switch with diagnostic feedback for 12 V grounded loads
• All types of resistive, inductive and capacitive loads
• Suitable for loads with high inrush currents, so as lamps
• Suitable for loads with low currents, so as LEDs
• Replaces electromechanical relays, fuses and discrete circuits


Pinout

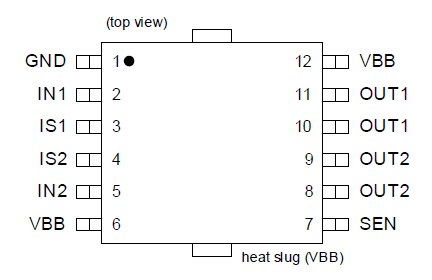

Connection Diagram


Specifications

Stresses above the ones listed here may affect device reliability or may cause permanent damage to the device.
Unless otherwise specified:
T = 25

Pos. Parameter Symbol Limit Values Unit Test Conditions
min. max.
Supply Voltage
3.1.1 Supply voltage Vbb -16 28 V
3.1.2 Supply voltage for full short circuit protection (single supse) (Tj(0)=-40..150) Vbb(SC) 0 28 V L=8H,R=0.21)
3.1.3 Voltage at power transistor VDS - 52 V
3.1.4 Supply Voltage for Load Dump protection Vbb(LD)   41 V RI=22)
RL=6.8
Power Stages
3.1.5 Load current IL - IL(LIM) A -3)
3.1.6 Maximum energy dissipation single pulse EAS - 0.58 J IL(O)=2A4)
Tj(0)=150
3.1.7 Power dissipation (DC) Ptot - 1.7 W Ta=855)
Tj150
Logic Pins
3.1.8 Voltage at input pin VIN -5
-16		 10 V t2min
3.1.9 Current through input pin IIN -2.0
-8.0		 2.0 mA t2min
3.1.10 Voltage at sense enable pin VSEN -5
-16		 10 V t2min
3.1.11 Current through sense enable pin ISEN -2.0
-8.0		 2.0 mA t2min
3.1.12 Current through sense pin IIS -25 10 mA
Temperatures
3.1.13 Junction Temperature Tj -40 150
3.1.14 Dynamic temperature increase while switching     60
3.1.15 Storage Temperature Tstg -55 150
ESD Susceptibility
3.1.16

ESD susceptibility HBM
IN,SEN
IS
OUT

 VESD -1
-2
-4		 1
2
4		 kV according to EIA/JESD
22-A 114B

1)Rand L describe the complete circuit impedance including line, contact and generator impedances
2)Load Dump is specified in ISO 7636, RI is the internal resistance of the Load Dump pulse generator
3)Current limitation is a protection feature. Operation in current limitation is considered as "outside" normal operating range. Protection features are not designed for continuous repetitive operation.
4)Pulse shape represents inductive switch off: IL (t) = IL (0) * (1 - t/ t ); 0 < t peak< tpeak
5) Device mounted on PCB (50 mm x 50 mm x 1.5mm epoxy, FR4) with 6 cm2 copper heatsinking area (one layer, 70 m thick) for Vbb connection. PCB is vertical without blown air.


Parameters:

Technical/Catalog InformationBTS5234L
VendorInfineon Technologies
CategoryIntegrated Circuits (ICs)
Package / CaseDSO-12
Mounting TypeSurface Mount
TypeHigh Side
Voltage - Supply4.5 V ~ 28 V
On-State Resistance45 mOhm
Current - Output / Channel3.5A
Current - Peak Output28A
PackagingTape & Reel (TR)
Input TypeNon-Inverting
Number of Outputs2
Operating Temperature-40°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BTS5234L
BTS5234L
