BTS452R

Mounting Style : SMD/SMT
Number of Outputs : 1
Maximum Operating Temperature : + 150 C
On Resistance (Max) : 200 mOhms
Package / Case : TO-252-5
On Time (Max) : 180 us
Operating Supply Voltage : 6 V to 52 V
Off Time (Max) : 200 us
Supply Current (Max) : 2 mA


Features:

•Overload protection
•Current limitation
•Short circuit protection
•Thermal shutdown with restart
•Overvoltage protection
  (including load dump)
•Fast demagnetization of inductive loads
•Reverse battery protection
  with external resistor
•Open drain diagnostic output for overtemperature
  and short circuit
•Open load detection in OFF - State
  with external resistor
•CMOS compatible input
• Loss of GND and loss of V_bb protection
•ESD - Protection
•Very low standby current


Application

•All types of resistive, inductive and capacitive loads
•µC compatible power switch for 12 V, 24 V and 42 V DC applications
• Replaces electromechanical relays and discrete circuits

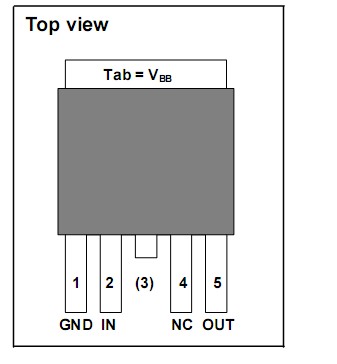

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply voltage	Vbb	52	V
Supply voltage for full short circuit protection	Vbb(SC)	50
Continuous input voltage	VIN	-10 ... +16
Load current (Short - circuit current, see page 5)	IL	self limited	A
Current through input pin (DC)	IIN	±5	mA
Operating temperature	Tj	-40 ...+150
Storage temperature	Tstg	-55 ... +150
Power dissipation 4)	Ptot	41.6	W
Inductive load switch-off energy dissipation4)5) single pulse Tj= 125 IL= 0.5 A	EAS	150	J
Load dump protection5)VLoadDump6)= VA+ VS RI=2Ω, td=400ms, VIN= low or high, VA=13,5V RL= 47 Ω	VLoaddump	73.5 88.5	V
Electrostatic discharge voltage(HumanBodyModel) according to ANSI EOS/ESD - S5.1 - 1993 ESD STM5.1 - 1998 Input pin All other pins	VESD	±1 ±5	kV

Description

N channel vertical power FET BTS452R with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS^® technology.Providing embedded protective functions.


Parameters:

Technical/Catalog Information	BTS452R
Vendor	Infineon Technologies (VA)
Category	Integrated Circuits (ICs)
Package / Case	DPak, TO-252 (4 leads + tab)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	6 V ~ 52 V
On-State Resistance	150 mOhm
Current - Output / Channel	2.2A
Current - Peak Output	6.5A
Packaging	Digi-Reel?
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BTS452R BTS452R BTS452RINDKR ND BTS452RINDKRND BTS452RINDKR
