BTA208S-800B Selling Leads, Price trend, BTA208S-800B DataSheet download, circuit diagram from SeekIC.com

PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDRM Repetitive peak off-state voltages - -500500 -600600 -800800 V IT(RMS) RMS on-state current full sine wave;Tmb 102 ˚C - 8 A ITSM Non-repetitive peak on-state current full sine wave; Tj ...

See larger image

SeekIC No. : 004302750 Detail

BTA208S-800B: PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDRM Repetitive peak off-state voltages - -500500 -600600 -800800 V IT(RMS) RMS on-state current full sin...

BTA208S-800B Data Sheet

Get Latest Price

Part Number:: BTA208S-800B
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BTA20 BW evaluate
Features: ·HIGH COMMUTATION : (dI/dt)c > 18A/ms without snubber .·HIGH SURGE CURRENT : ITSM = 2...
BTA20 CW evaluate
Features: ·HIGH COMMUTATION : (dI/dt)c > 18A/ms without snubber .·HIGH SURGE CURRENT : ITSM = 2...
BTA2008-600D,412 evaluate
US $.09 - .1 / Piece

Triacs Thyristor TRIAC 600V 9.9A 3-Pin SPT

Product Details

Description

Pinout

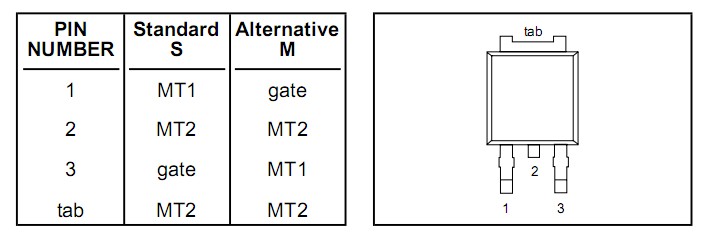

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.			UNIT
V_DRM	Repetitive peak off-state voltages		-	-500 500	-600 600	-800 800	V
I_T(RMS)	RMS on-state current	full sine wave;T_mb 102 ˚C	-	8			A
I_TSM	Non-repetitive peak on-state current	full sine wave; T_j= 25 ˚C prior to surge t = 20 ms t = 16.7 ms	- -	65 71			A A
I²t	I²t for fusing	t = 10 ms	-	21			A²s
dI_T/dt	Repetitive rate of rise of on-state current after triggering	I_TM = 12 A; I_G = 0.2 A; dI_G/dt =0.2 A/µs	-	100			A/µs
I_GM	Peak gate current	over any 20 ms period	-	2			A
P_GM	Peak gate power		-	5			W
P_G(AV)	Average gate power		-	0.5			W
T_stg	Storage temperature		-40	150			˚C
T_j	Operating junction temperature		-	125			˚C

Description

Glass passivated high commutation triacs BTA208S-800B in a plastic envelope, suitable for surfacemounting, intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. BTA208S-800B will commutate the full rated rms current at the maximumrated junction temperature, without the aid of a snubber.
