BTA140B

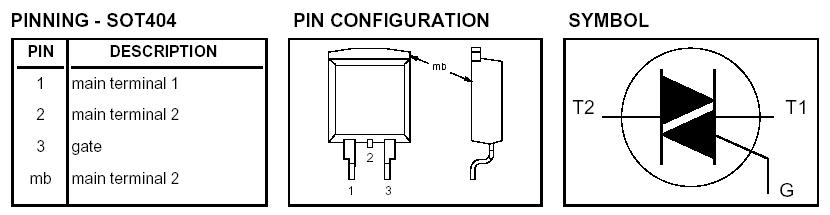

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.			UNIT
VDRM IT(RMS) ITSM I2t dIT/dt IGM VGM PGM PG(AV) Tstg Tj	Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current I2t for fusing Repetitive rate of rise of on-state current after triggering Peak gate current Peak gate voltage Peak gate power Average gate power Storage temperature Operating junction temperature	full sine wave; Tmb 91 °C full sine wave; Tj = 25 °C prior to surge t = 20 ms t = 16.7 ms t = 10 ms ITM = 30 A; IG = 0.2 A; dIG/dt = 0.2 A/ms                               T2+ G+                               T2+ G-                               T2- G-                               T2- G+ over any 20 ms period	- - - - - - - - - - - - - -40 -	-500 5001	-600 6001	-800 8001	V A A A A2s A/s A/s A/s A/s A V W W
				25 190 209 180 50 50 50 10 2 5 5 0.5 150 125

Description

Glass passivated triacs BTA140B in a plastic envelope suitable for surface mounting, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications of BTA140B include motor control, industrial and domestic lighting, heating and static switching.
