Product Details

Description

Features:

· High current (max. 1 A)
· Low voltage (max. 80 V).

Application

· Thick and thin-film circuits
· Telephony and general industrial applications.

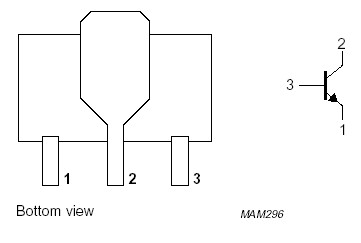

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage BSR40; BSR41 BSR42; BSR43	open emitter	- -	70 90	v v
V_CEO	collector-emitter voltage BSR40; BSR41 BSR42; BSR43	open base	- -	60 80	v v
V_EBO	emitter-base voltage	open collector	-	5	V
I_C	collector currentDC		-	1	A
ICM	peak base current		-	2	A
IBM	peak base current		-	0.2	A
P_tot	total power dissipation	T_abm = 25 °C; note 1	-	1.35	mW
T_stg	storage temperature		-65	150	°C
T_j	junction temperature		-	175	°C
T_amb	operating ambient temperature		-65	-65	°C

Note
1. Device mounted on a printed-circuit board, single sided copper, tinplated, mounting pad for collector 6 cm2.
For other mounting conditions, see "Thermal considerations for SOT89 in the General Part of associated Handbook".

Description

NPN medium power transistor BSR41 in a SOT89 plastic package. PNP complements: BSR30; BSR3 and BSR33.
