Product Details

Description



Features:

 Vcc operation voltage : 4.5V ~ 5.5V
Very low power consumption :
   Vcc = 5.0V  C-grade: 75mA (@55ns) operating current
   I -grade:76mA (@55ns) operating current
   C-grade: 60mA (@70ns) operating current
   I -grade: 61mA (@70ns) operating current
   8.0uA (Typ.) CMOS standby current
High speed access time :
     -55          55ns
     -70          70ns
Automatic power down when chip is deselected
Three state outputs and TTL compatible
Fully static operation
Data retention supply voltage as low as 1.5V
Easy expansion with CE1, CE2 and OE options

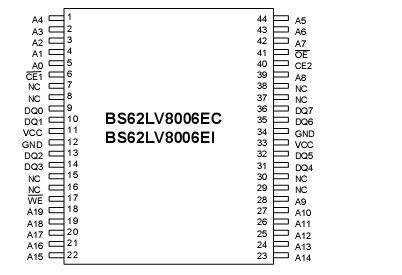

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VTERM Terminal Voltage with
Respect to GND		 -0.5 to
Vcc+0.5		 V
TBIAS Temperature Under Bias -40 to +85
TSTG Storage Temperature 60 to +150
PT Power Dissipation 1.0 W
IOUT DC Output Current 20
mA



Description

The BS62LV8006 is a high performance , very low power  CMOS  Static  Random Access Memory  organized  as  1,048,576  words by 8 bits and  operates from a range of 4.5V to 5.5V supply voltage.

Advanced CMOS technology and  circuit  techniques of BS62LV8006ECP55  provide  both high speed and low  power features with a typical  CMOS  standby current  ofo o8.0uA at 5V/25 C and maximum access time of 55ns at 5.0V/85 C.

Easy memory expansion of BS62LV8006ECP55 is provided by an active LOW chip enable(OE1), an active HIGH chip enable (CE2) and active LOW output  enable (OE) and three-state output drivers.

The BS62LV8006 has an automatic power  down  feature, reducing thepower consumption significantly when chip is deselected.

The BS62LV8006 is available in 48B BGA and 44L TSOP2 packages.
