Product Details

Description



Features:

 Wide Vcc operation voltage : 2.4V ~ 5.5V
Very low power consumption :
   Vcc = 3.0V    C-grade:  29mA (@55ns) operating current
   I -grade: 30mA (@55ns) operating current
   C-grade:  24mA (@70ns) operating current
   I -grade: 25mA (@70ns) operating current
   0.45uA (Typ.) CMOS standby current
   Vcc = 5.0V    C-grade: 68mA (@55ns) operating current
   I -grade: 70mA (@55ns) operating current
   C-grade:  58mA (@70ns) operating current
   I -grade: 60mA (@70ns) operating current
   2.0uA (Typ.) CMOS standby current
High speed access time :
   -55          55ns
   -70          70ns
Automatic power down when chip is deselected
Fully static operation


Pinout

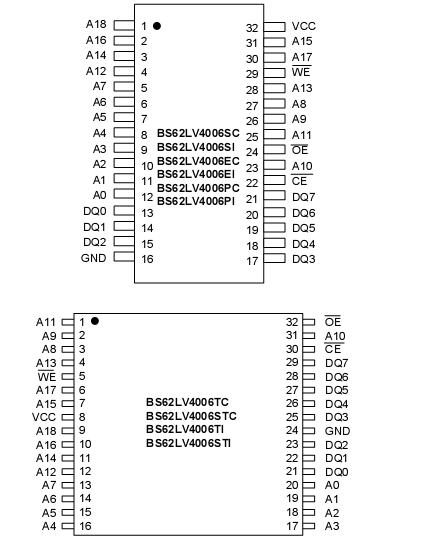

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VTERM Terminal Voltage with
Respect to GND		 -0.5 to
Vcc+0.5		 V
TBIAS Temperature Under Bias -40 to +85
TSTG Storage Temperature 60 to +150
PT Power Dissipation 1.0 W
IOUT DC Output Current 20
mA



Description

The  BS62LV4006  is  a  high  performance,  very  low  power  CMOS Static Random Access Memory organized as 524,288 words  by 8 bits and operates from a wide range of 2.4V to 5.5V supply voltage.

Advanced  CMOS  technology and circuit techniques of BS62LV4006EC-55 provide both high speed and low  power features with a typical CMOS standby current of 0.45uA at 3.0V/25oCand maximum access time of 55ns at 3.0V/85oC. Easy memory expansion is provided by an active  LOW  chip enable (CE) , and  active  LOW  output  enable (OE)  and   three-state   output  drivers.

The BS62LV4006 has an automatic  power down feature, reducing the power consumption significantly when chip is deselected. The BS62LV4006 is available in the JEDEC standard 32L SOP, TSOP , PDIP, TSOP II and STSOP package.
