Product Details

Description



Features:

• Wide Vcc operation voltage : 2.7V ~ 3.6V
• Very low power consumption :
    Vcc = 3.0V     C-grade: 20mA (Max.) operating current
                         I -grade: 25mA (Max.) operating current
                         0.5uA (Typ.) CMOS standby current
• High speed access time :
    -70     70ns (Max) at Vcc = 3.0V
    -10   100ns (Max) at Vcc = 3.0V
• Automatic power down when chip is deselected
• Three state outputs and TTL compatible
• Fully static operation
• Data retention supply voltage as low as 1.5V
• Easy expansion with CE and OE options

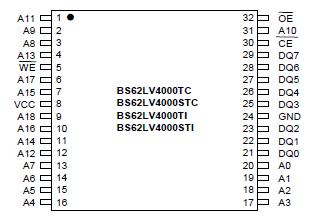

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VTERM Terminal Voltage with Respect to GND -0.5 to Vcc+0.5 V
TBIAS Temperature Under Bias -40 to +125
TSTG Storage Temperature -60 to +150
PT Power Dissipation 1.0 W
IOUT DC Output Current 20 mA
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The BS62LV4000 is a high performance, very low power CMOS Static Random Access Memory organized as 524,288 words by 8 bits and operates from a wide range of 2.7V to 3.6V supply voltage.

Advanced CMOS technology and circuit techniques of BS62LV4000TC provide both high speed and low power features with a typical CMOS standby current of 0.5uA and maximum access time of 70ns in 3V operation.

Easy memory expansion of BS62LV4000TC is provided by an active LOW chip enable (CE), and active LOW output enable (OE) and three-state output drivers.

The BS62LV4000 has an automatic power down feature, reducing the power consumption significantly when chip is deselected.

The BS62LV4000 is available in the JEDEC standard 32 pin , 8mmx13.4mm STSOP, and 8mmx20mm TSOP.
