BS62LV2006

Features:

* Wide Vcc operation voltage : 2.4V~5.5V
* Very low power consumption :
      Vcc = 3.0V     C-grade : 22mA (@55ns) operating current
                           I- grade : 23mA (@55ns) operating current
                           C-grade : 17mA (@70ns) operating current
                           I- grade : 18mA (@70ns) operating current
                           0.3uA  (Typ.) CMOS standby current
      Vcc = 5.0V     C-grade : 53mA (@55ns) operating current
                           I- grade : 55mA (@55ns) operating current
                           C-grade : 43mA (@70ns) operating current
                           I- grade : 45mA (@70ns) operating current
                           1.0uA  (Typ.) CMOS standby current
* High speed access time :
             -55          55ns
             -70          70ns
* Automatic power down when chip is deselected
* Three state outputs and TTL compatible

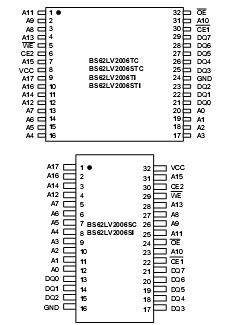

Pinout




Specifications

VTERM  Terminal Voltage with Respect to GND       -0.5 to Vcc+0.5     V
TBIAS   Temperature Under Bias                             -40 to +85
TSTG    Storage Temperature                                  -60 to +150
PT        Power Dissipation                                       1.0                       W
IOUT    DC Output Current                                      20                        mA

Description

The  BS62LV2006  is  a  high  performance, very   low  power   CMOS Static Random Access Memory organized as  262,144  words by 8 bits and operates from a wide range of 2.4V to 5.5V supply voltage.
Advanced  CMOS  technology and circuit techniques provide both high speed and low  power features with a typical CMOS standby current of 0.3uA at 3.0V/25 and maximum access time of 55ns at 3.0V/85.
Easy  memory  expansion   is   provided   by  an  active   LOW  chip enable (CE1),   an  active  HIGH  chip  enable (CE2),  and  active LOW output enable (OE) and three-state output drivers.
The BS62LV2006 has an automatic  power down feature, reducing the power consumption significantly when chip is deselected.
The  BS62LV2006  is available in DICE form, JEDEC standard  32  pin 450mil  Plastic  SOP, 8mmx13.4mm STSOP  and  8mmx20mm TSOP.
